Resistive HMI Control Panel Industrial Operator Panels RS485

Brand Name : LONGYU

Model Number : HMIAT6070MKT

Certification : CE RoHS

Place of Origin : China

MOQ : 1 pcs

Price : TBA

Payment Terms : T/T, Western Union，Paypal

Supply Ability : 10000PCS/Month

Delivery Time : 7-10 Work Days

Packaging Details : 1-5pcs/CTN, Safe, Firm, suitable for international shipping

Product size : 7 Inch

Resolution ratio : 800*480

Display brightness : 450cd/m2

Touch screen : Four wire resistive

C P U : Cortex A7,four core 1.2 Ghz

Memory : 1G DDR3 RAM

Operational temperature : -40℃-70℃

Degree of protection : IP 65

Contact Now

Product Description



Industrial Control 7" RS485 HMI Operator Panel Resistive PC -40℃-70℃



HMIAT6070KT is a high-performance embedded integrated man-machine interface based on the industrial-grade T3 Cortex A7 quad-core 1.2G CPU. This product is an industrial 7 "human-machine interface product, using 7" high-light LED LCD display (resolution 800*480), four wire resistance touch screen. Meanwhile, Lonkon industrial configuration software is pre-installed.



Specifications:

  • LCD screen:7-inch TFT LCD, LED backlight, color 65536 bits
  • Resolution:800*480
  • Display brightness:450cd/m2
  • C P U:Cortex A7,FOUR core 1.2 Ghz
  • Touch screen:Four wire resistive, click more than 1 million times
  • Interface:2*RS232R,3*S485 Expandable 2*CAN port,2*LAN
  • Extension interface:2*USB 2.0
  • Input voltage:12V to 30V Wide range input voltage
  • Product Size:W206 mm×H148 mm×36 mm
  • Opening size:W191mm×H132.6 mm

Product Performance:



·LCD screen: : 7-inch TFT LCD, LED backlight, color 65536 bits
·Resolution : 800*480
Display brightness : 450cd/m2
·C P U : Cortex A7,four core 1.2 Ghz
·Memory : 1G DDR3 RAM
·Touch screen : Four wire resistive, click more than 1 million times
·Storage device : 8G eMMC electronic disk
·SD card extension : Optional, Max scalability 64G
·Interface : 2*RS232R,3*S485 Expandable 2*CAN port,2*LAN
·Extension interface : 2*USB 2.0(HOST)
·Real time clock : Available
·Buzzer : Available
·Operational temperature : -40℃ to +70℃
·Degree of protection : IP 65( operating surface)
·Input voltage : 12V to 30V Wide range input voltage
·Anti interference : Power frequency magnetic field interference level 5,Magnetic field strength 100A / M
·Product Size : W206 mm×H148 mm×36 mm
·Opening size : W191mm×H132.6 mm

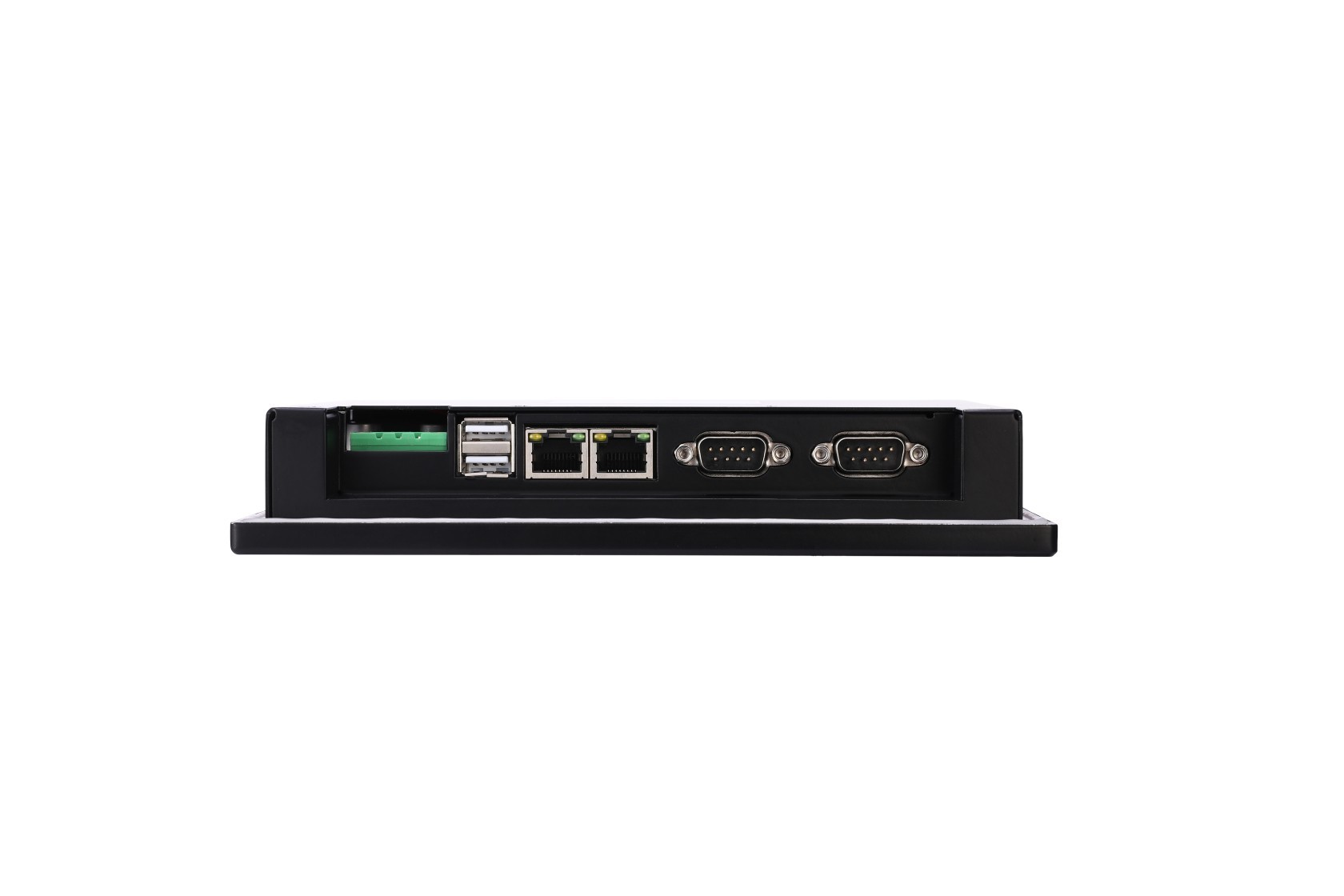

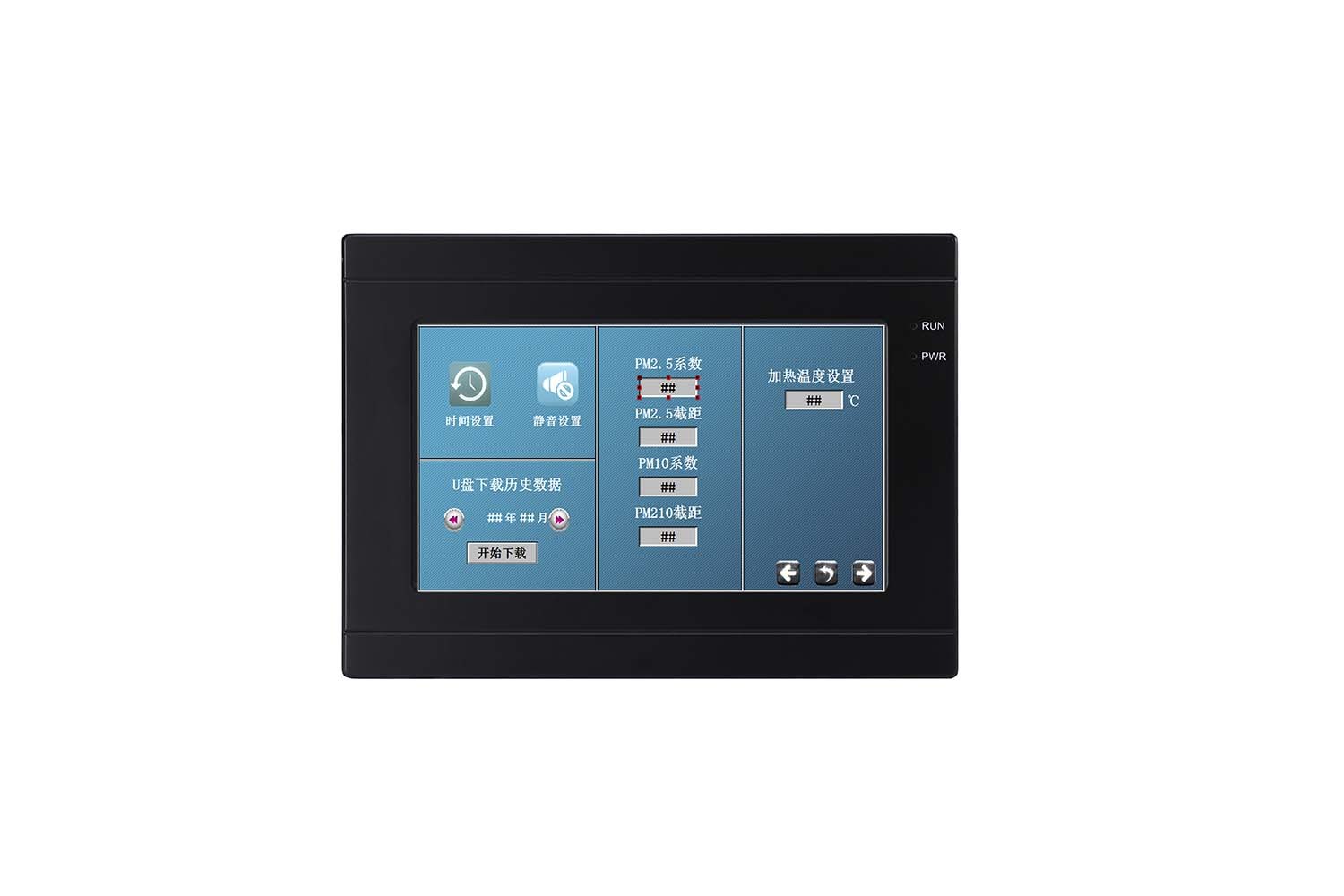

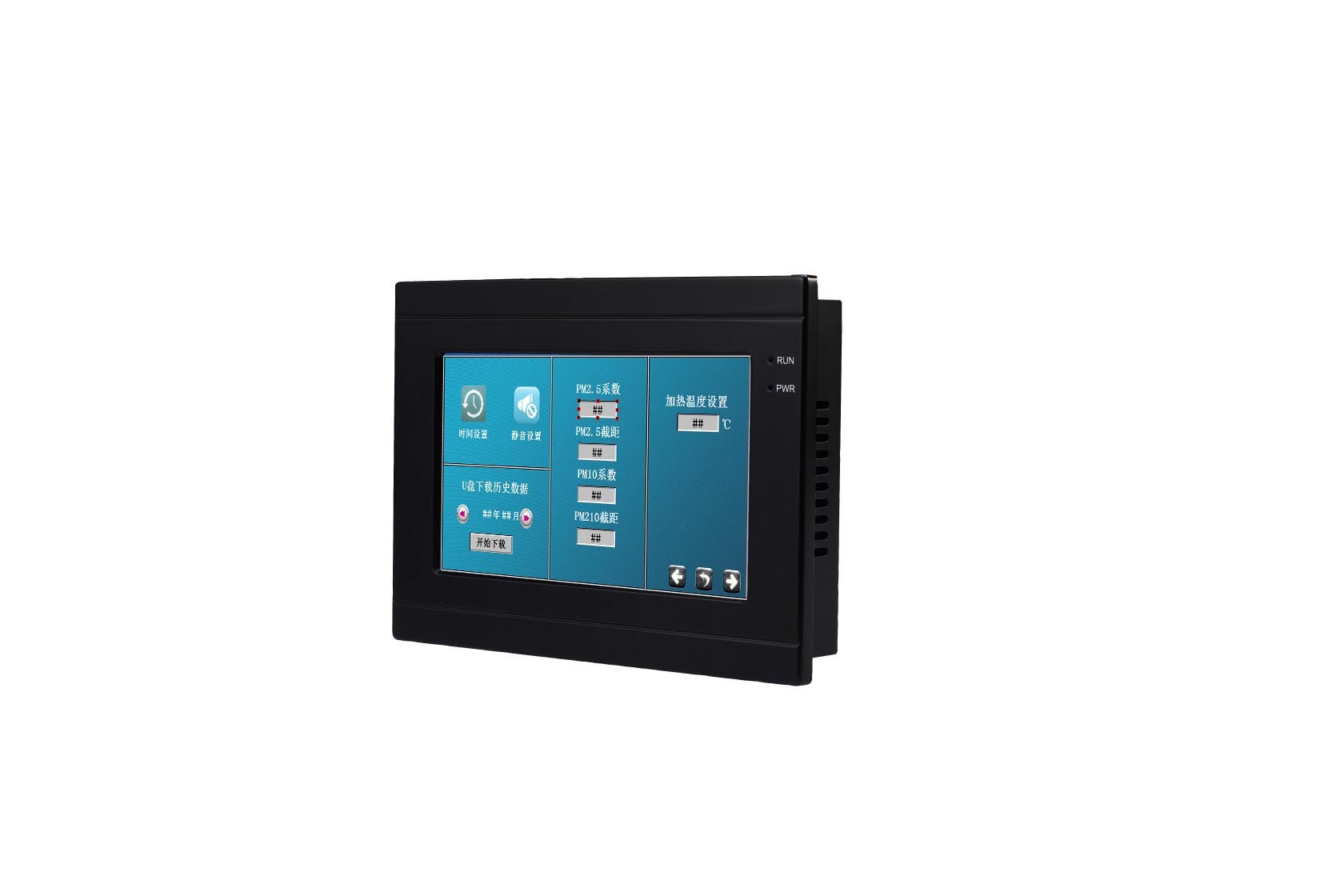

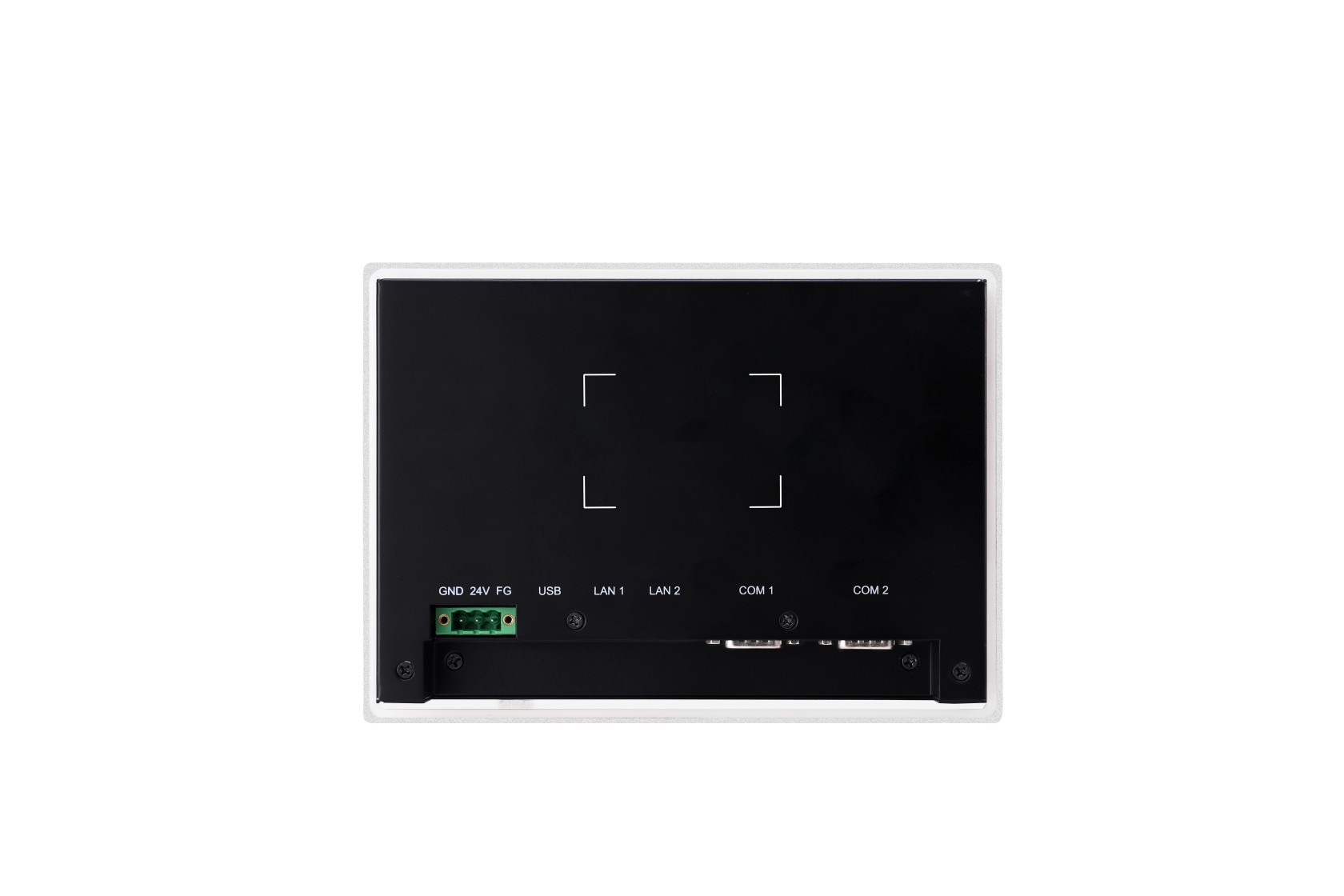

Resistive HMI Control Panel Industrial Operator Panels RS485Resistive HMI Control Panel Industrial Operator Panels RS485Resistive HMI Control Panel Industrial Operator Panels RS485Resistive HMI Control Panel Industrial Operator Panels RS485
Resistive HMI Control Panel Industrial Operator Panels RS485
Resistive HMI Control Panel Industrial Operator Panels RS485
Resistive HMI Control Panel Industrial Operator Panels RS485
